Frequently Asked Questions About Silo Pressure Relief Valves

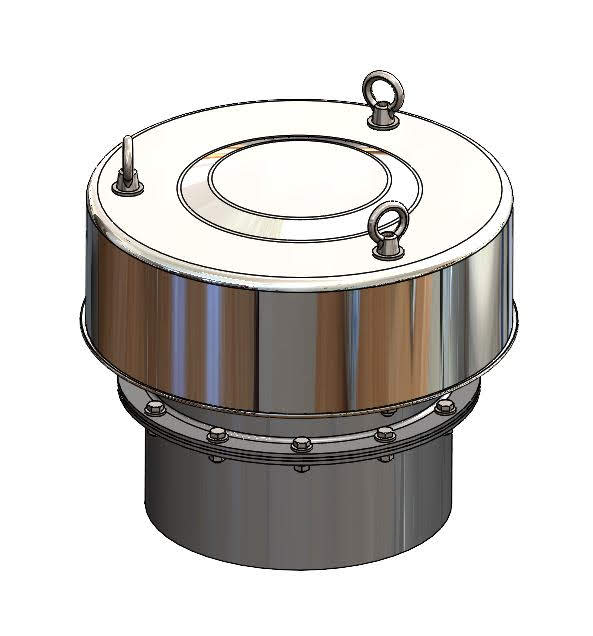

1. What is a silo pressure relief valve?

A silo pressure relief valve is a safety device installed on a cement silo, fly ash silo or powder-storage bin. It helps protect the silo by releasing excessive positive pressure or allowing air to enter during excessive negative pressure.

2. How does a cement silo pressure relief valve work?

During abnormal positive pressure, the valve opens to allow excess air to escape. During abnormal negative pressure or vacuum, it opens in the opposite direction to allow outside air to enter the silo and restore safer pressure conditions.

3. Why is a pressure relief valve required on a cement silo?

Pneumatic tanker filling can increase pressure inside the silo. Material discharge or rapid material collapse can create negative pressure. A properly selected relief valve provides emergency pressure protection for the silo and its accessories.

4. What is another name for a silo pressure relief valve?

It may also be called a silo safety valve, pressure control valve, silo breather valve, vacuum relief valve, positive and negative pressure valve, pressure balance valve or cement silo relief valve.

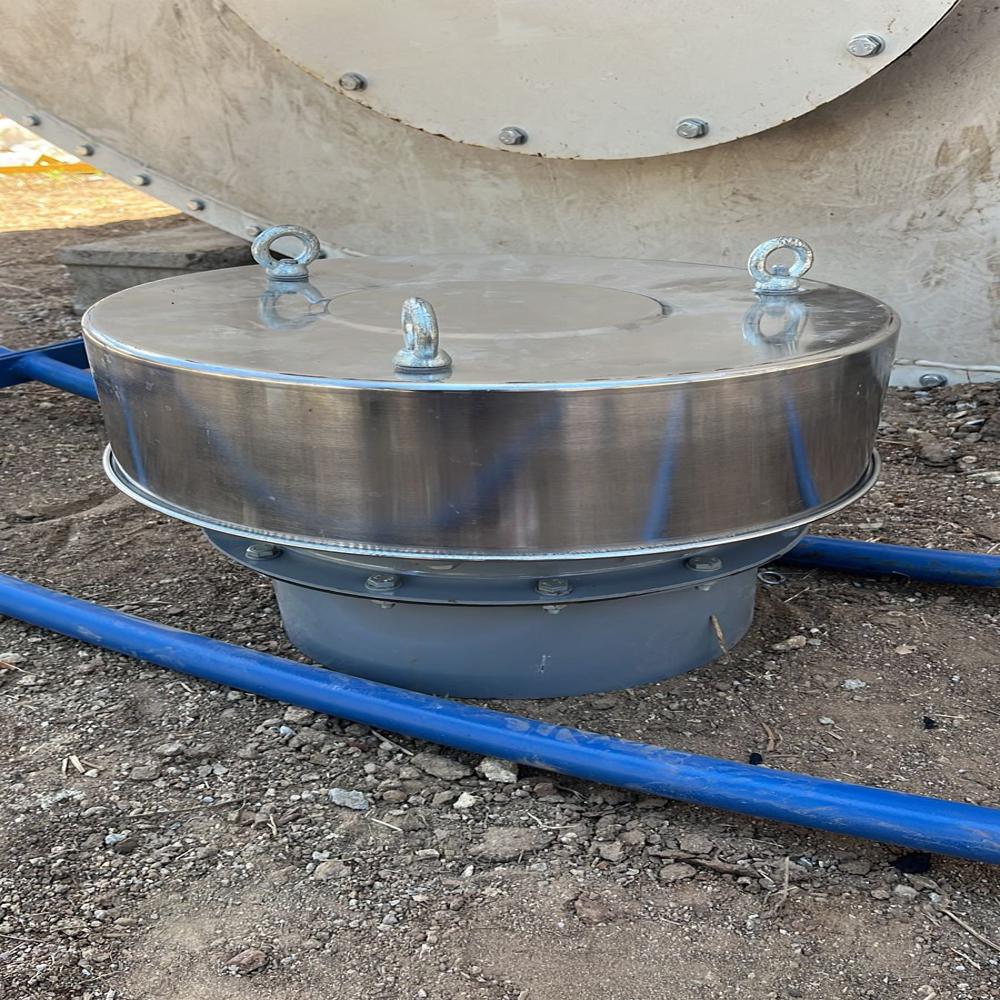

5. Where is a pressure relief valve installed?

It is normally installed on the silo roof or upper section where it can respond to internal pressure changes. The exact mounting position should follow the silo design and valve manufacturers instructions.

6. Does a silo pressure relief valve control positive and negative pressure?

Many silo pressure relief valves are designed to respond to both excessive positive pressure and excessive negative pressure. The selected valve specification must be checked before installation.

7. What causes excessive pressure inside a cement silo?

Possible causes include high tanker filling pressure, a blocked or undersized dust collector, blocked venting, excessive tanker purging, overfilling or failure of the silo filling-control system.

8. What causes negative pressure inside a silo?

Negative pressure can occur during rapid material discharge, material collapse, cooling of enclosed air or blocked airflow into the silo.

9. Can excessive pressure damage a cement silo?

Yes. Excessive internal pressure can damage the silo body, roof, dust collector, seals and other accessories. A complete silo safety system should control filling, pressure and maximum material level.

10. Can a pressure relief valve prevent silo overfilling?

No. A pressure relief valve responds to abnormal pressure; it does not measure the cement level. A separate high-level indicator and filling-control system are required to reduce the risk of overfilling.

11. Can a pressure relief valve replace a silo dust collector?

No. The dust collector filters displaced air during normal pneumatic filling. The pressure relief valve is an emergency safety device for abnormal pressure conditions. Both components perform different functions.

12. Should the pressure relief valve open during every silo filling?

Under normal filling conditions, the dust collector and venting system should handle the airflow. Frequent opening of the pressure relief valve may indicate a blocked filter, excessive filling pressure or another problem that requires inspection.

13. What is the difference between a pressure relief valve and a breather valve?

The terms are sometimes used interchangeably. However, a silo pressure relief valve is normally selected as a safety device with defined positive and negative opening conditions for dry-bulk storage equipment.

14. What is the difference between a spring-loaded and counterweighted pressure relief valve?

A spring-loaded valve uses calibrated springs to keep the valve closed under normal conditions. A counterweighted or membrane valve uses a diaphragm and calibrated weights. Selection depends on the application and required response characteristics.

15. What pressure setting is required for a cement silo relief valve?

The setting must be selected according to the silo design pressure, venting system and valve manufacturers recommendations. A universal pressure setting should not be used for every silo.

16. Can the pressure setting be adjusted?

Some designs include calibrated adjustment arrangements. Adjustment should only be performed according to the manufacturers instructions by competent personnel. Incorrect adjustment can reduce silo protection.

17. Can a pressure relief valve be used on a fly ash silo?

Yes. A suitable valve can be used on fly ash, lime, GGBS, gypsum and other powder-storage silos when the material, pressure conditions and valve construction are compatible.

18. What materials are used to manufacture silo pressure relief valves?

Depending on the model, components may be manufactured from carbon steel, stainless steel, engineering polymers, rubber membranes, springs, seals and protective covers.

19. Why is cement dust coming out of the relief valve?

Dust discharge may indicate excessive internal pressure, a blocked dust collector, overfilling, incorrect valve settings, a damaged seal, contamination inside the valve or an unsuitable venting system.

20. Why is the pressure relief valve continuously open?

Possible reasons include material buildup, a damaged membrane or seal, incorrect calibration, damaged springs, displaced counterweights, mechanical obstruction or excessive silo pressure.

21. How should a silo pressure relief valve be cleaned?

Isolate the silo filling system and follow the manufacturers safety instructions. Remove cement buildup carefully and check that the moving components, membrane, springs, seals and vent passages are clean and undamaged.

22. How often should a pressure relief valve be inspected?

It should be inspected and function-tested as part of the regular silo maintenance programme. Inspection frequency should consider filling frequency, dust conditions, material characteristics and the valve manufacturers recommendations.

23. Can a pressure relief valve be installed on an existing silo?

Yes. A suitable weld-on or bolted mounting connection can be prepared on an existing silo. The silo design, roof strength, valve orientation and safe access must be checked before installation.

24. Can a pressure sensor be connected with the relief valve?

A silo safety system may use a separate pressure switch or electronic pressure meter together with the pressure relief valve, high-level indicator, dust collector, alarm and filling-control valve.

25. What is the price of a cement silo pressure relief valve in India?

The price depends on valve type, body material, pressure and vacuum settings, diameter, membrane or spring design, protective cover, sensor arrangement and required quantity.

26. Where can I buy a silo pressure relief valve in Pune?

Customers can contact RA Enterprises with their silo capacity, stored material, valve type, mounting details, required quantity and project location for a suitable quotation.

27. What information is required for a pressure relief valve quotation?

Please provide the silo capacity, stored material, existing mounting diameter, required valve type, positive and negative pressure requirements, material of construction, quantity and delivery location.
