Frequently Asked Questions About Silo Butterfly Valves/Dust collector Butterfly valves.

1. What is a silo butterfly valve?

A silo butterfly valve is a flow-control valve installed at the outlet of a cement silo, fly ash silo, hopper or storage bin. It opens or closes the material discharge path between the silo and the screw conveyor or other conveying equipment.

2. How does a cement silo butterfly valve work?

The valve contains a circular disc that rotates approximately 90 degrees. When the disc is aligned with the material-flow direction, the valve is open. When the disc rotates across the opening, it restricts or stops the material flow.

3. Where is a butterfly valve installed on a cement silo?

It is normally installed directly below the silo cone outlet and above the screw conveyor inlet. It may also be fitted below a hopper, weighing bin or other dry-material storage equipment.

4. What is the purpose of a butterfly valve in a cement silo?

The valve isolates the stored material and controls when cement is allowed to enter the screw conveyor. It also helps stop material flow during maintenance, equipment replacement or an emergency.

5. Is a silo butterfly valve suitable for cement powder?

Yes. Butterfly valves designed for dry bulk materials are commonly used for cement, fly ash, lime, gypsum, GGBS and other powders. The valve body, disc and seal must be compatible with the stored material.

6. What is another name for a silo butterfly valve?

It may also be called a cement silo outlet valve, powder butterfly valve, dry bulk butterfly valve, silo discharge valve, hopper butterfly valve or batching plant butterfly valve.

7. What is the difference between a silo butterfly valve and a liquid butterfly valve?

A silo butterfly valve is specifically designed to control dry powders or granular materials. A liquid butterfly valve is designed for pipelines carrying water, chemicals or other fluids. Their body design, seals, disc and operating conditions may differ.

8. What is the difference between a single-flange and double-flange butterfly valve?

A single-flange valve is commonly fitted directly below the silo outlet. A double-flange valve has connection flanges on both sides and may be installed between two pieces of equipment. The correct type depends on the silo and conveyor arrangement.

9. What sizes are available for silo butterfly valves?

Silo butterfly valves are available in different outlet diameters. The correct size should match the silo discharge flange, required material-flow rate and screw conveyor inlet.

10. How do I select the correct butterfly valve size?

Check the silo outlet diameter, flange drilling, material type, screw conveyor size, required discharge rate and available installation space. The valve dimensions should be confirmed before ordering.

11. What is a manual silo butterfly valve?

A manual butterfly valve is opened and closed using a lever, hand wheel or manual actuator. It is suitable for applications where automatic operation is not required.

12. What is a pneumatic silo butterfly valve?

A pneumatic butterfly valve uses compressed air and a pneumatic actuator to open or close the valve automatically. It can be connected to a batching plant control panel or PLC.

13. Which is better: a manual or pneumatic butterfly valve?

A manual valve is economical and suitable for occasional operation. A pneumatic valve is more suitable for automatic batching plants, frequent operation and remotely controlled material discharge.

14. Can a silo butterfly valve connect to a PLC?

Yes. A pneumatic actuator can be connected to a solenoid valve, limit switches and PLC. This allows the batching plant control system to operate the valve and monitor its open or closed position.

15. Does a pneumatic butterfly valve require compressed air?

Yes. It requires a clean and regulated compressed-air supply. The required pressure depends on the selected actuator model and manufacturers technical specifications.

16. Can a butterfly valve control the exact cement quantity?

A standard butterfly valve is primarily an isolation and flow-control device. It does not independently measure the exact cement quantity. Accurate batching normally requires weighing equipment and a suitable feeding-control system.

17. Can a butterfly valve be installed above a screw conveyor?

Yes. This is one of its most common applications. The valve is installed between the silo outlet and screw conveyor inlet to isolate or release cement into the conveyor.

18. Why is cement leaking through the butterfly valve?

Leakage may be caused by a damaged seal, worn disc, cement buildup, incorrect valve alignment, incomplete closing or foreign material trapped between the disc and seal.

19. Why is the butterfly valve difficult to open?

The valve may be jammed by compacted cement, hardened material, an incorrectly aligned flange, a damaged seal, a bent shaft or insufficient pneumatic actuator force.

20. Can the butterfly valve seal be replaced?

Replaceable seals are available for many valve designs. The correct replacement seal must match the valve model, diameter, material and operating conditions.

21. What maintenance is required for a silo butterfly valve?

Regularly inspect the disc, seal, shaft, lever or actuator, mounting bolts and flange connections. Remove cement buildup and check that the valve opens and closes fully without excessive force.

22. Can a silo butterfly valve be installed on an existing silo?

Yes. It can normally be fitted to an existing silo when the outlet flange dimensions and available installation space are suitable. An adaptor flange may be required if the connection dimensions do not match.

23. What is the price of a silo butterfly valve in India?

The price depends on valve diameter, single- or double-flange design, body material, disc material, seal material, manual or pneumatic actuator and required quantity.

24. Where can I buy a silo butterfly valve in Pune?

Customers can contact RA Enterprises with the required valve diameter, flange type, operating method, stored material, quantity and delivery location to receive a suitable quotation.

25. What information is required for a butterfly valve quotation?

Please provide the valve diameter, flange type, stored material, manual or pneumatic operation, actuator requirement, operating voltage for the solenoid valve, limit-switch requirement, quantity and delivery location.

Related Searchable Keywords

Silo butterfly valve, cement silo butterfly valve, cement silo outlet valve, powder butterfly valve, dry bulk butterfly valve, silo discharge valve, hopper butterfly valve, batching plant butterfly valve, butterfly valve for cement silo, butterfly valve for fly ash silo, manual silo butterfly valve, pneumatic silo butterfly valve, single-flange butterfly valve, double-flange butterfly valve, butterfly valve with pneumatic actuator, butterfly valve with manual lever, cement silo isolation valve, screw conveyor inlet valve, silo outlet control valve, cement powder control valve, concrete batching plant valve, silo butterfly valve price in India, cement silo butterfly valve manufacturer in India, silo butterfly valve supplier in Pune, pneumatic butterfly valve supplier in Pune and batching plant spare parts supplier.

Frequently Asked Questions About Butterfly Valves and Actuators for Dust Collectors

1. What is a dust collector butterfly valve?

A dust collector butterfly valve is a flow-control and isolation valve installed below the collection hopper. It controls the discharge of cement dust, fly ash and other collected powder from the dust collector.

2. How does a butterfly valve work?

The valve contains a circular disc that rotates through approximately 90 degrees. When the disc is aligned with the material-flow direction, the valve is open. When it rotates across the opening, it stops or restricts the material flow.

3. Where is a butterfly valve installed on a dust collector?

It is normally installed below the dust-collection hopper. It may discharge the collected material into a bucket, screw conveyor, rotary valve, storage bin or material-recovery system.

4. What is the purpose of a butterfly valve in a dust collector?

The valve isolates the collection hopper and allows controlled removal or recovery of accumulated dust. It also helps prevent uncontrolled powder discharge during maintenance.

5. What materials can a dust collector butterfly valve handle?

A suitable butterfly valve can handle cement dust, fly ash, lime, gypsum, GGBS, microsilica, mineral powder and other dry bulk materials.

6. What is another name for a dust collector butterfly valve?

It may also be called a hopper discharge valve, powder butterfly valve, dust discharge valve, dry bulk butterfly valve, dust collector outlet valve or material isolation valve.

7. What is a butterfly valve actuator?

An actuator is a device that opens and closes the butterfly valve. Manual, pneumatic and electric actuator options are available depending on the required operating method.

8. What is a manual butterfly valve actuator?

A manual actuator uses a hand lever, handle or gearbox to operate the valve. It is suitable for applications where the valve is opened only occasionally.

9. What is a pneumatic butterfly valve actuator?

A pneumatic actuator uses compressed air to rotate the valve disc. It is commonly used in automatic dust-collection and material-handling systems.

10. What is an electric butterfly valve actuator?

An electric actuator uses an electric motor and gearbox to operate the butterfly valve. It is suitable where compressed air is unavailable or electrical operation is preferred.

11. Which actuator is best for a dust collector butterfly valve?

A manual actuator is suitable for simple discharge operations. A pneumatic or electric actuator is more suitable for automatic systems, frequent operation and remote control.

12. Can the actuator connect to a dust collector control panel?

Yes. Pneumatic and electric actuators can be connected to the control panel, PLC or automation system for automatic opening and closing.

13. Does a pneumatic actuator require a solenoid valve?

A solenoid valve is generally used to control the compressed-air supply to the pneumatic actuator. Its coil voltage must match the dust collector control panel.

14. What is the function of a limit switch?

A limit switch provides confirmation that the butterfly valve has reached its fully open or fully closed position. This signal can be used for indication and equipment interlocking.

15. Can a butterfly valve be operated automatically after filter cleaning?

Yes. The control system can be designed to open the valve after a cleaning cycle and discharge collected dust into a bucket, screw conveyor or recycling system.

16. What is the difference between a single-flange and double-flange butterfly valve?

A single-flange valve has one main mounting flange and is commonly fitted below a hopper. A double-flange valve has connections on both sides and can be installed between two pieces of equipment.

17. How do I select the correct butterfly valve size?

The valve size should match the dust collector hopper outlet, connected equipment, required discharge rate, flange dimensions and material characteristics.

18. Can a silo butterfly valve be used on a dust collector hopper?

It may be used when the diameter, flange arrangement, seal and material compatibility match the dust collector application.

19. Why is powder leaking through the butterfly valve?

Leakage may be caused by a worn seal, damaged disc, trapped material, incorrect alignment, incomplete closing or an unsuitable valve design.

20. Why is the butterfly valve difficult to operate?

The valve may be jammed by compacted powder, hardened material, a damaged seal, incorrect flange alignment, a bent shaft or insufficient actuator force.

21. Can the rubber seal be replaced?

Replaceable seals are available for many butterfly valve designs. The replacement seal must match the valve model, diameter and stored material.

22. What maintenance is required?

Regularly inspect the valve disc, seal, shaft, actuator, solenoid valve, limit switches, mounting bolts and electrical or pneumatic connections.

23. Can the butterfly valve be installed on an existing dust collector?

Yes. It can normally be installed when the hopper outlet diameter, flange drilling and available clearance are suitable.

24. What is the price of a butterfly valve with actuator in India?

The price depends on the valve diameter, flange type, body and disc material, seal material, actuator type, solenoid valve, limit switches and required quantity.

25. Does RA Enterprises supply butterfly valves and actuators?

Yes. RA Enterprises supplies butterfly valves with manual, pneumatic or electric operating arrangements for dust collectors, silos, hoppers and powder-handling systems.

26. What information is required for a quotation?

Please provide the valve diameter, flange type, handled material, actuator type, available air pressure, solenoid voltage, limit-switch requirement, quantity and delivery location.

Related Searchable Keywords

Butterfly valve and actuator

Dust collector butterfly valve

Dust collector hopper valve

Hopper discharge butterfly valve

Dust discharge valve

Powder butterfly valve

Dry bulk butterfly valve

Cement dust butterfly valve

Dust collector outlet valve

Material isolation valve

Single-flange butterfly valve

Double-flange butterfly valve

Manual butterfly valve

Pneumatic butterfly valve

Electric actuated butterfly valve

Butterfly valve with pneumatic actuator

Butterfly valve with electric actuator

Butterfly valve with manual lever

Quarter-turn pneumatic actuator

Piston-type pneumatic actuator

Rotary pneumatic actuator

Butterfly valve solenoid valve

Butterfly valve limit switch

Open-close position indicator

Dust collector hopper discharge system

Dust collector material recovery valve

Butterfly valve for cement powder

Butterfly valve for fly ash

Butterfly valve spare parts

Butterfly valve rubber seal

Butterfly valve actuator price in India

Butterfly valve and actuator manufacturer in India

Dust collector butterfly valve supplier in Pune

Pneumatic actuator supplier in Pune

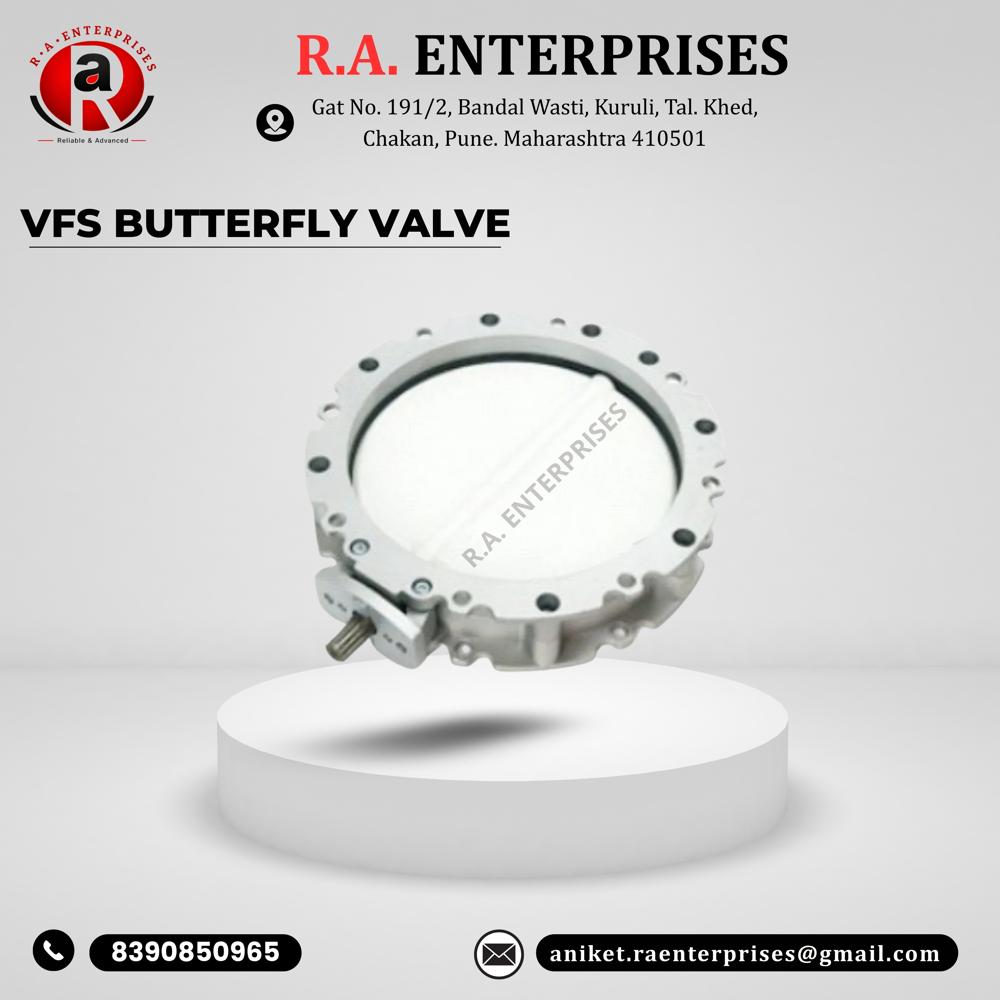

Q: Does the VFS Butterfly Valve come with a warranty?
