About Dust collector 25 bag

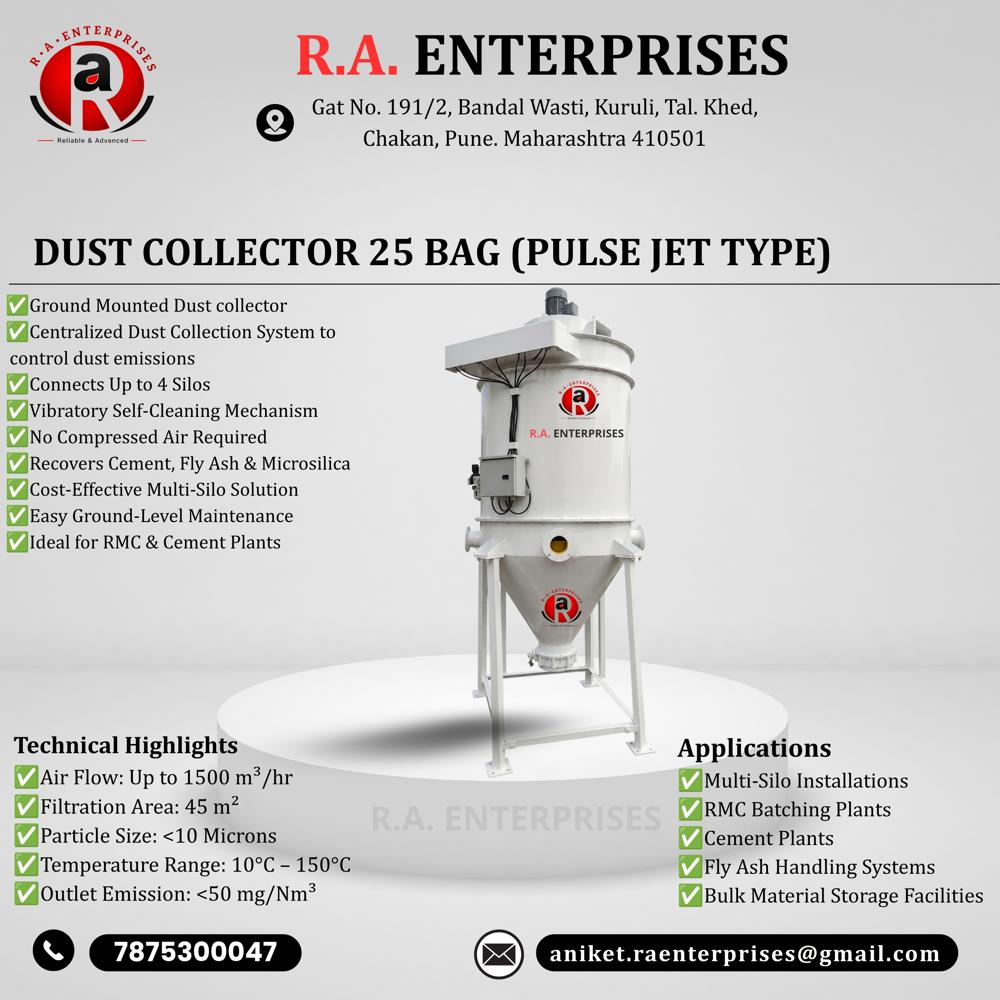

25 Bag Ground-Mounted Silo Dust Collector Reverse Air Jet Type

SEO Title

25 Bag Silo Dust Collector Manufacturer in Pune

Meta Description

R.A. Enterprises manufactures 25 bag ground-mounted silo dust collectors for cement, fly ash and RMC batching plants with efficient reverse air-jet cleaning.

Product Description

The 25 Bag Ground-Mounted Silo Dust Collector from R.A. Enterprises is designed for efficient dust extraction in cement silos, RMC batching plants and bulk powder handling systems.

The unit captures fine dust generated during cement unloading, silo feeding, screw conveyor discharge and material transfer operations. Dust-laden air is drawn into the filter chamber, where the filter bags retain cement, fly ash and other fine particles while allowing filtered air to discharge from the system.

Its reverse air-jet cleaning mechanism periodically removes accumulated dust from the filter bags, helping maintain consistent airflow and reducing manual filter cleaning. The separated material is collected in the integrated bottom hopper for controlled disposal or recovery.

Manufactured with a heavy-duty mild-steel body, the dust collector is suitable for continuous industrial operation and can be customized according to the required airflow, filtration area, dust characteristics and installation layout.

Key Features

• 25 high-performance filter bags

• Reverse air-jet filter cleaning system

• Ground-mounted industrial design

• Heavy-duty mild-steel construction

• Integrated dust collection hopper

• Efficient extraction of fine powder

• Easy filter inspection and replacement

• Reduced dust leakage and material loss

• Suitable for continuous industrial use

• Customized configurations available

Applications

• Cement silo unloading systems

• Ready-mix concrete batching plants

• Fly ash handling systems

• Screw conveyor discharge points

• Cement feeding and transfer systems

• Dry-mix mortar plants

• Lime and gypsum powder handling

• Bulk powder loading and unloading

• Industrial material transfer points

Frequently Asked Questions

What is a 25 bag silo dust collector?

A 25 bag silo dust collector is an industrial filtration system equipped with 25 filter bags. It captures fine dust generated during cement unloading, material feeding and bulk powder transfer operations.

Where is this dust collector installed?

This model is installed at ground level and connected to the silo unloading point, screw conveyor, feeding system or other dust-generating material transfer locations.

How does the reverse air-jet cleaning system work?

The cleaning system sends controlled air pulses through the filter bags. These air pulses dislodge accumulated dust from the filter surface and allow it to fall into the collection hopper.

Which materials can the dust collector handle?

It can be used for cement, fly ash, lime powder, gypsum, mineral powder and other dry, non-sticky bulk materials. Filter media must be selected according to the material and operating conditions.

Is it suitable for an RMC batching plant?

Yes. The 25 bag dust collector is suitable for controlling dust generated around cement silos, screw conveyors, weigh hoppers and material transfer points in RMC batching plants.

What is the difference between a ground-mounted and silo-top dust collector?

A silo-top dust collector vents displaced air directly from the top of the silo. A ground-mounted dust collector is normally connected through ducting to unloading, feeding or material transfer points and collects separated dust inside a hopper.

How is the correct dust collector capacity selected?

Selection depends on required airflow, number of extraction points, type of powder, dust concentration, conveying method, operating temperature, duct length and allowable pressure drop.

How often should the filter bags be cleaned or replaced?

Cleaning frequency depends on dust loading and operating hours. Filter bags should be inspected regularly and replaced when they are damaged, blocked or unable to maintain the required airflow.

Can the dust collector be customized?

Yes. R.A. Enterprises can customize the filtration area, bag material, blower capacity, hopper arrangement, inlet size, outlet position, control panel and overall dimensions according to the application.

What details are required for a quotation?

Please provide the material being handled, required airflow, number of extraction points, silo or equipment details, operating hours, available electrical supply and installation layout.
