Frequently Asked Questions About Screw Conveyor End Bearings

1. What is a screw conveyor end bearing?

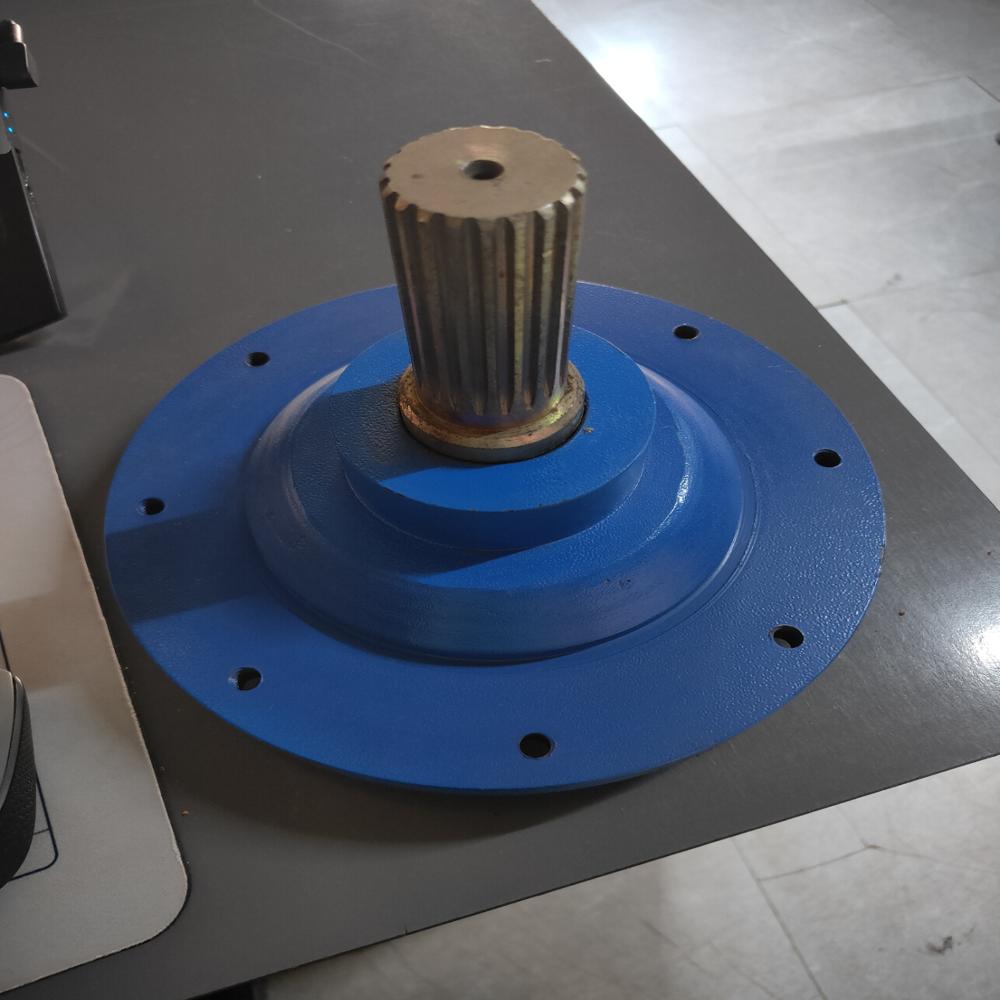

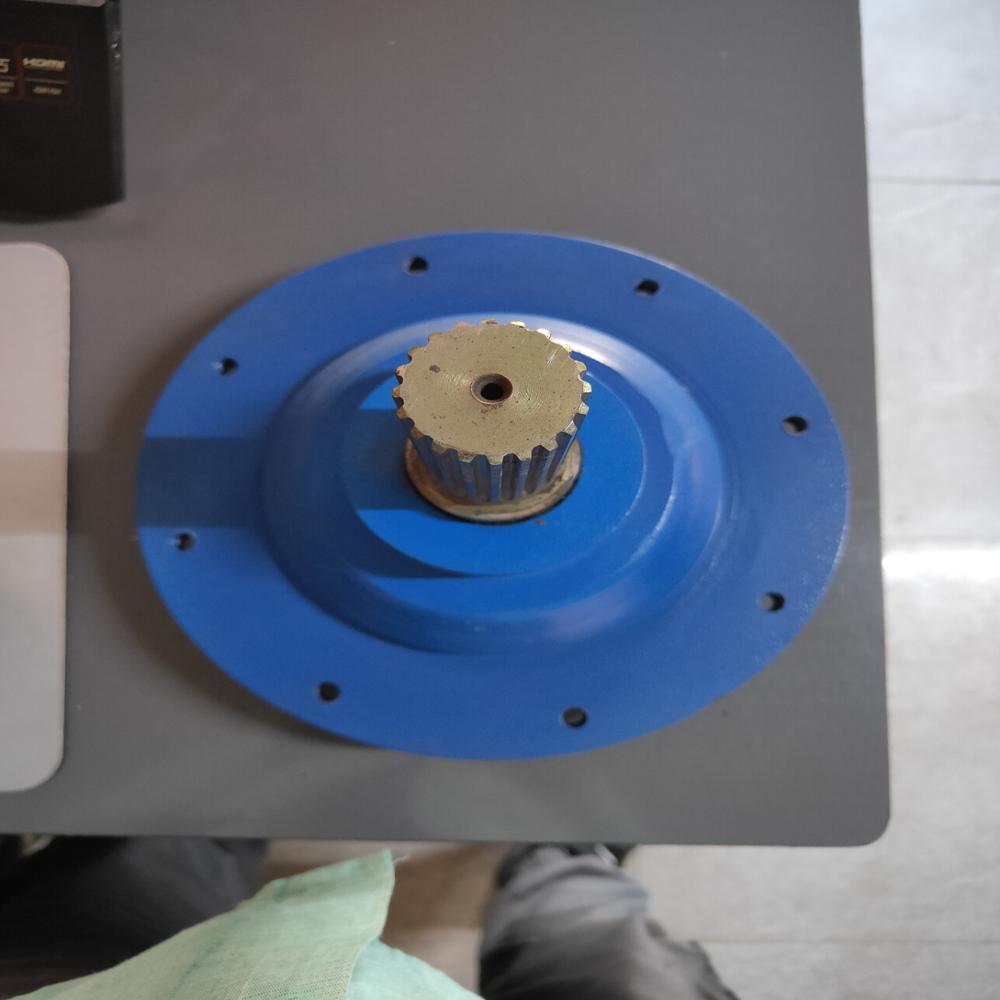

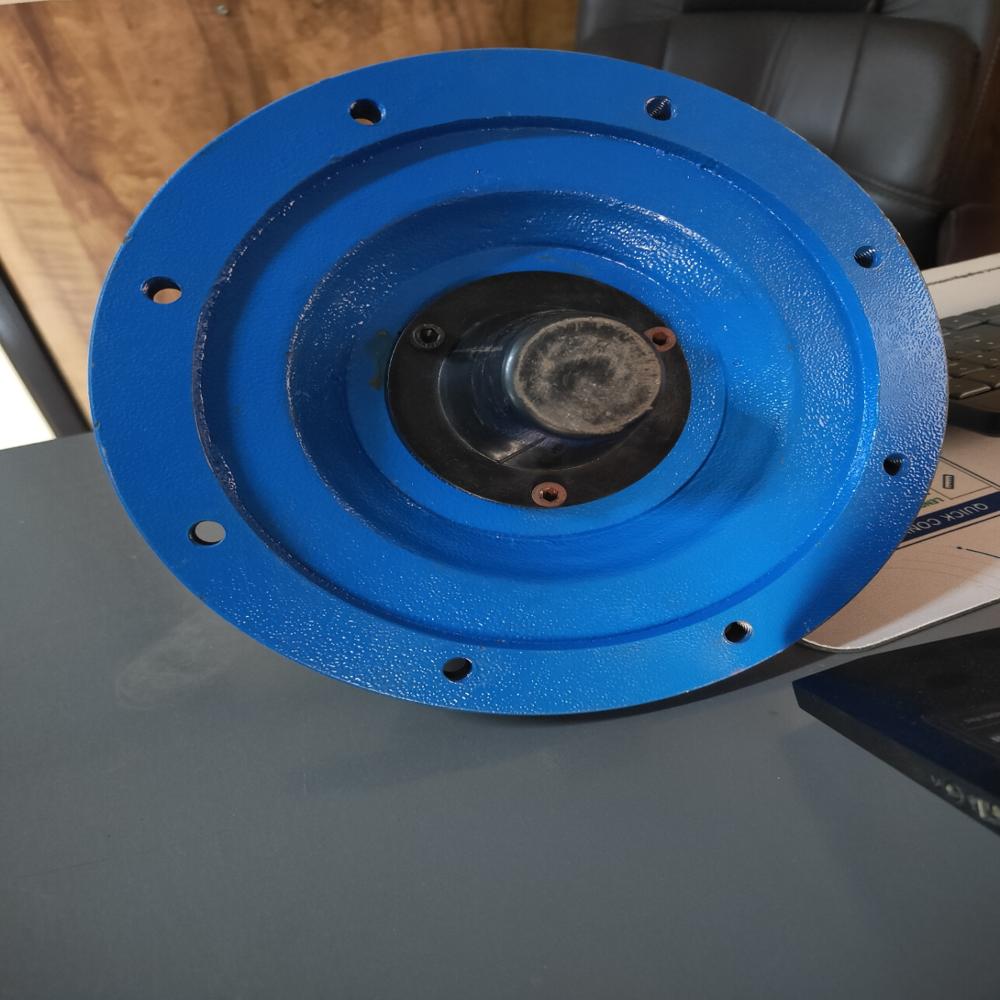

A screw conveyor end bearing is a bearing assembly installed at the drive end or tail end of the conveyor. It supports the rotating screw shaft and helps maintain its correct alignment.

2. What is the purpose of an end bearing?

The end bearing supports radial loads from the screw assembly and may also control axial or thrust movement generated while conveying material.

3. Where are end bearings installed?

End bearings are installed at one or both ends of the screw conveyor casing. One is generally located near the geared motor or drive assembly, and the other is located at the tail end.

4. What is another name for a screw conveyor end bearing?

It may also be called a terminal bearing, drive-end bearing, tail-end bearing, thrust bearing, flanged bearing, pillow-block bearing or screw conveyor end-shaft bearing.

5. What is the difference between a drive-end and tail-end bearing?

The drive-end bearing supports the shaft near the geared motor and may be designed to carry thrust loads.

The tail-end bearing supports the opposite end of the screw and generally permits smooth shaft rotation and alignment.

6. What is a thrust bearing?

A thrust bearing is designed to control axial movement along the screw shaft. It helps prevent the internal screw assembly from moving lengthwise and contacting the conveyor ends or intermediate bearings.

7. What is radial load?

Radial load acts perpendicular to the shaft centreline. It may be caused by the weight of the screw, material load, motor, gearbox or an overhung chain-drive arrangement.

8. What is axial or thrust load?

Axial load acts parallel to the shaft centreline. In a screw conveyor, it is created by the reaction force generated as the rotating screw pushes the bulk material forward.

9. Which end of a screw conveyor carries the thrust bearing?

The thrust-bearing position depends on the conveyor design. In many installations, the drive and thrust-bearing assembly is located near the discharge end so that the screw operates mainly in tension.

10. What types of end bearings are used?

Common types include:

Flanged ball bearing

Flanged roller bearing

Pillow-block ball bearing

Pillow-block roller bearing

Tapered roller bearing

Spherical roller bearing

Thrust-bearing assembly

The correct type depends on the radial load, thrust load, shaft size, speed and mounting arrangement.

11. What is a flanged end bearing?

A flanged bearing is mounted directly to the conveyor end plate or trough end. It provides a compact bearing arrangement and helps support the end shaft.

12. What is a pillow-block bearing?

A pillow-block bearing is mounted on a separate support frame outside the conveyor casing. It is commonly used where additional support, adjustment or drive arrangement is required.

13. What is the difference between a ball bearing and roller bearing?

Ball bearings are commonly suitable for moderate radial loads and higher rotational speeds.

Roller bearings generally provide greater load-carrying capacity and may be selected for heavier radial or thrust loads.

14. Which end bearing is suitable for a cement screw conveyor?

The bearing must be selected according to the shaft diameter, screw length, cement load, conveyor inclination, operating speed, gearbox position and expected thrust force.

15. Is the bearing exposed to cement dust?

The bearing is normally positioned outside the material-contact area, but damaged or unsuitable shaft seals can allow cement dust to enter and contaminate it.

16. What is the function of an end-shaft seal?

The end-shaft seal helps prevent cement or powder from leaking around the rotating shaft and protects the bearing from material contamination.

17. What types of shaft seals are available?

Common arrangements include:

Gland-packing seal

Plate seal

Lip seal

Air-purged seal

Mechanical seal

Labyrinth-type seal

The correct seal depends on the material, pressure, speed and dust-tightness requirement.

18. Why is cement leaking near the end bearing?

Possible causes include a worn shaft seal, damaged packing, shaft runout, loose end plate, excessive conveyor loading or incorrect seal installation.

19. What causes end-bearing failure?

Common causes include:

Incorrect bearing selection

Misalignment

Insufficient lubrication

Excessive lubrication

Cement contamination

Excessive thrust load

Bent end shaft

Loose mounting bolts

Overloaded screw conveyor

Damaged shaft seal

20. Why is the end bearing overheating?

Overheating may result from incorrect lubrication, excessive bearing preload, misalignment, contamination, excessive thrust, worn components or an overloaded conveyor.

21. Why is the end bearing making noise?

Possible causes include damaged bearing elements, insufficient lubrication, loose bearing housing, shaft misalignment, contamination or excessive shaft runout.

22. Can a damaged end bearing cause motor tripping?

Yes. A seized or heavily worn bearing increases rotational resistance and can overload the geared motor, causing the protection system to trip.

23. Can an end bearing cause screw-flight contact with the casing?

Yes. Bearing wear, shaft movement or misalignment can allow the internal screw to move away from its proper centreline and contact the casing.

24. How should the end bearing be aligned?

The drive shaft, tail shaft, intermediate bearings, gearbox and conveyor casing should share the correct centreline. Alignment must be checked before final tightening.

25. How often should an end bearing be lubricated?

Lubrication frequency depends on the bearing type, speed, operating temperature, dust exposure and manufacturers recommendation. Over-lubrication should also be avoided.

26. Can an end bearing be replaced separately?

Yes. In many designs, the bearing housing, bearing insert, end shaft and seal can be serviced or replaced separately.

27. Can a standard industrial bearing be used?

Only when its bore size, load capacity, speed rating, sealing arrangement and mounting dimensions satisfy the screw conveyor requirements.

28. What is the price of a screw conveyor end bearing?

The price depends on bearing type, shaft diameter, bearing capacity, housing design, seal arrangement, material and required quantity.

29. Does RA Enterprises supply screw conveyor end bearings?

Yes. RA Enterprises supplies drive-end bearings, tail-end bearings, thrust-bearing assemblies, bearing housings, end shafts and related screw conveyor spare parts.

30. What information is required for a quotation?

Please provide:

Screw conveyor diameter

Drive-end or tail-end requirement

End-shaft diameter

Bearing bore size

Bearing type

Housing or flange dimensions

Conveyor speed

Motor and gearbox details

Conveyed material

Seal requirement

Required quantity

Sample, photograph or drawing

Delivery location
