Frequently Asked Questions About Silo Foundation Bolts and Anchor Plates

1. What is a silo foundation bolt?

A silo foundation bolt is a heavy-duty anchor used to secure the silo supporting legs or base plates to a reinforced-concrete foundation. It helps transfer structural loads between the silo and foundation.

2. What is another name for a foundation bolt?

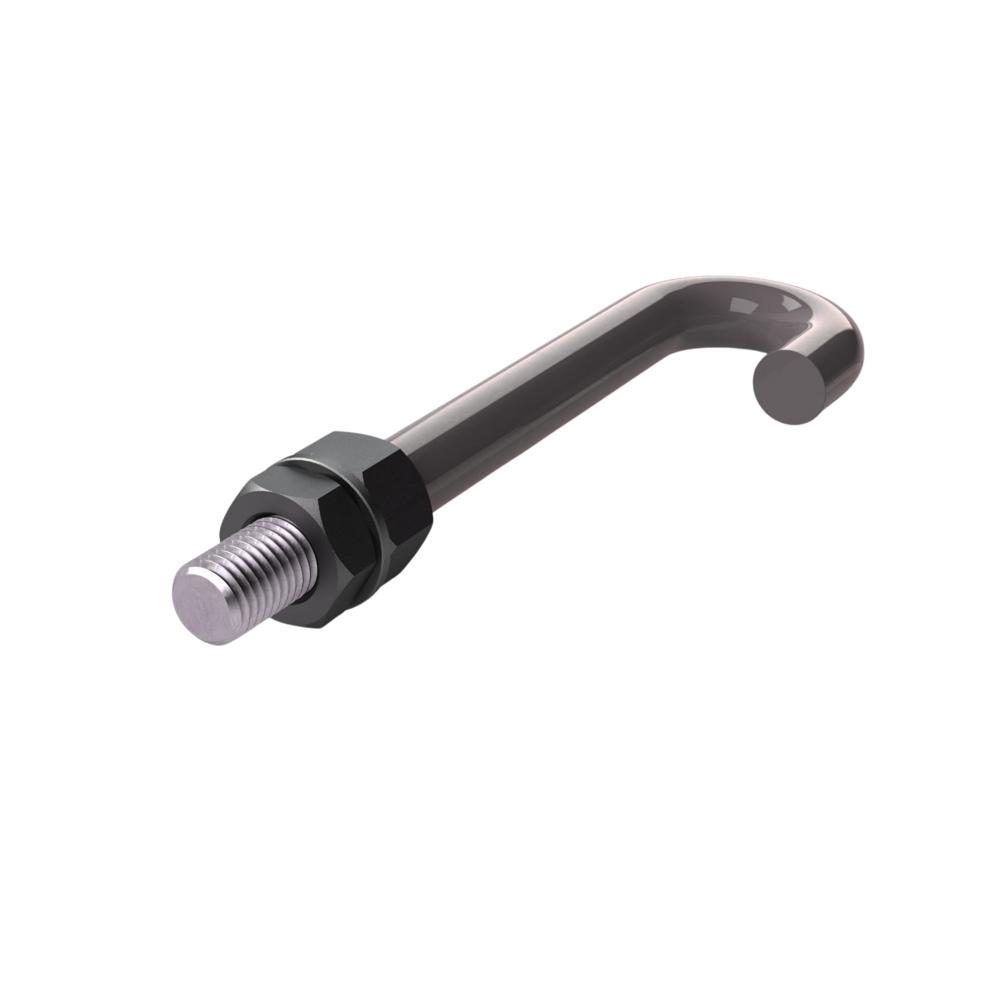

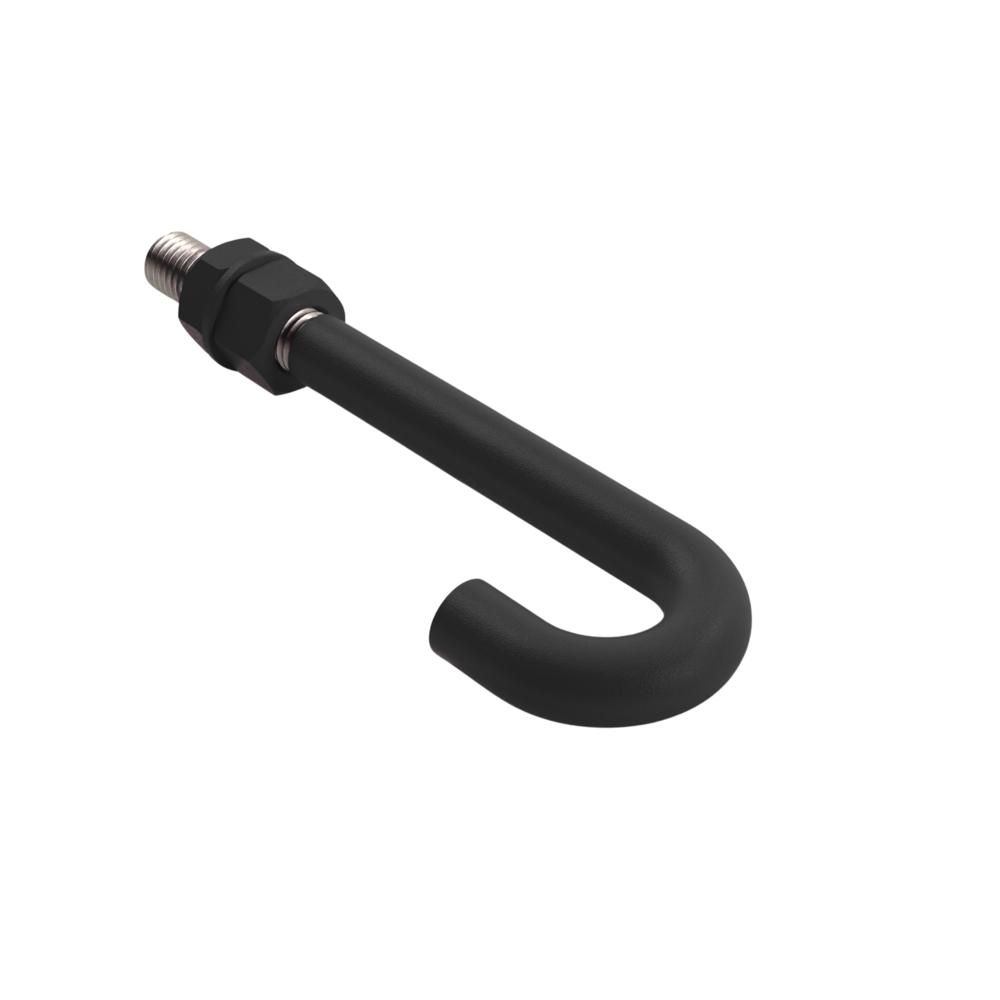

A foundation bolt may also be called an anchor bolt, holding-down bolt, cast-in anchor bolt, J bolt, L bolt, hooked anchor bolt, anchor rod or silo leg foundation bolt.

3. What is a silo foundation anchor plate?

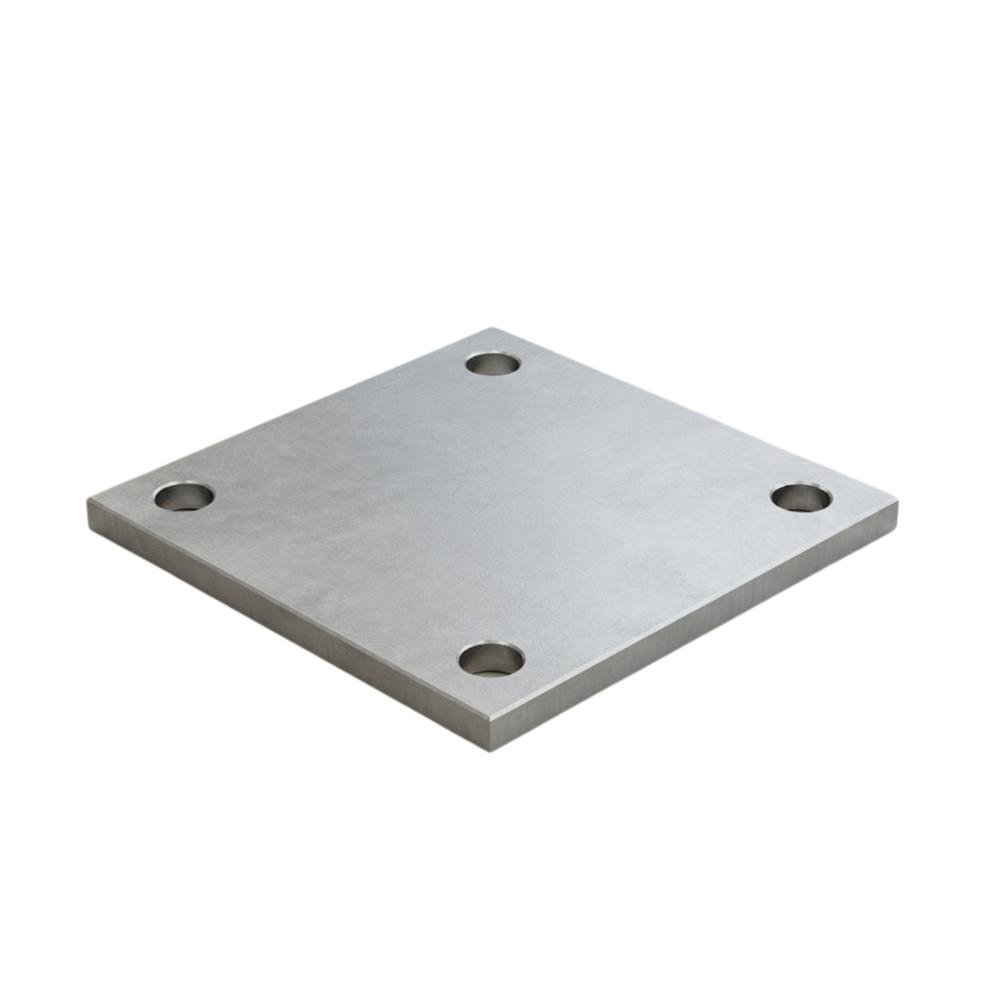

An anchor plate is a steel plate fitted at the embedded end of an anchor rod to improve anchorage inside the concrete. The term may also refer to a template plate used to maintain the required bolt positions during concreting.

4. What is the difference between a base plate and an anchor plate?

A base plate is normally welded or connected to the silo leg and rests on the concrete foundation or grout. An anchor plate may be embedded in the concrete or used as a template to position the foundation bolts.

5. Why are foundation bolts required for a cement silo?

Foundation bolts secure the silo to the concrete foundation and help resist uplift, overturning, shear and movement caused by operating loads, wind, seismic forces and other structural actions.

6. Which type of foundation bolt is used for a cement silo?

Cast-in J bolts, L bolts, headed anchor rods or straight rods with anchor plates may be used. The correct type must be selected by the structural designer according to the silo and foundation design.

7. Which is better: a J bolt or an L bolt?

Neither type is universally better. The selection depends on the required load capacity, embedment, concrete design, reinforcement arrangement, fabrication method and structural engineers calculations.

8. Can straight anchor rods with plates be used for silo foundations?

Yes. Straight threaded rods with welded or mechanically secured anchor plates may be used when they are properly designed for the required tension, shear and embedment conditions.

9. What size foundation bolts are required for a cement silo?

The bolt diameter and length depend on the silo capacity, leg arrangement, operating weight, wind load, seismic load, foundation design, concrete strength and anchor layout. The size must be confirmed through structural calculations.

10. Can the same foundation bolt size be used for every cement silo?

No. Different silo capacities and site conditions create different forces. Bolt diameter, grade, embedment depth, spacing and plate size must be selected for the specific project.

11. How is the length of a foundation bolt calculated?

The total length normally includes the required concrete embedment, grout thickness, base-plate thickness, washer and nut allowance, projection above the foundation and any hook or anchor-plate arrangement.

12. How is the development length of a J bolt measured?

The fabrication length should include all straight portions, the curved hook and the threaded projection. The exact bend allowance depends on the rod diameter, bend radius and fabrication drawing.

13. What material is used for silo foundation bolts?

Foundation bolts are generally manufactured from specified carbon-steel or alloy-steel rods. The material grade, strength, weldability and corrosion protection must meet the project drawing and engineering requirements.

14. Which foundation bolt grade should be used?

The grade must be specified by the structural engineer. A higher-strength grade should not be substituted automatically because anchor performance also depends on concrete strength, embedment, spacing, edge distance and installation.

15. Should foundation bolts be galvanized?

Hot-dip galvanizing or another protective coating may be used where bolts are exposed to moisture or corrosive conditions. Coating requirements should be specified before thread manufacturing and fabrication.

16. What is a foundation bolt template?

A foundation bolt template is a steel or fabricated frame used to hold all anchor bolts at the correct centre distances, elevation and vertical alignment while the concrete is poured.

17. Why is a template plate important?

A template plate reduces the risk of misplaced, tilted or incorrectly spaced anchor bolts. Accurate positioning is essential because the bolts must match the holes in the silo-leg base plates.

18. What details are required to manufacture a foundation bolt template?

Required details include bolt diameter, quantity, centre-to-centre distances, bolt-circle diameter or rectangular layout, projection height, plate-hole diameter, template thickness and reference orientation.

19. What is a silo leg base plate?

A silo leg base plate is a structural steel plate connected to the bottom of each supporting leg. It distributes forces from the leg to the grout, concrete foundation and anchor bolts.

20. How is silo base-plate thickness selected?

Base-plate thickness depends on the silo-leg load, plate dimensions, bolt arrangement, grout and concrete bearing conditions, bending forces and structural design method.

21. What size anchor plate is required?

Anchor-plate dimensions and thickness depend on the anchor force, rod diameter, embedment, concrete strength and reinforcement arrangement. They should not be selected using only the silo capacity.

22. How many foundation bolts are required for a cement silo?

The quantity depends on the number of silo legs, base-plate design and structural loads. Each leg may use multiple anchors, but the final quantity and layout must follow the approved foundation drawing.

23. What should be the distance between foundation bolts?

Bolt spacing is determined by the base-plate dimensions, anchor diameter, concrete edge distances, reinforcement and applicable structural design requirements. The approved drawing should be followed accurately.

24. What is foundation-bolt projection height?

Projection height is the length of threaded bolt remaining above the finished concrete or grout level. It must accommodate the grout, base plate, washer, nut and sufficient exposed thread.

25. What is the purpose of grout below a silo base plate?

Non-shrink grout fills the space between the steel base plate and concrete foundation. It provides uniform bearing, supports load transfer and compensates for small foundation-surface irregularities.

26. How are foundation bolts installed before concreting?

The bolts are assembled in a rigid template, positioned according to survey references, checked for centre distance, level and verticality, and securely supported so they do not move during concrete placement.

27. What should be checked before pouring the foundation?

Check the bolt layout, centre distances, diagonal dimensions, projection height, vertical alignment, template level, foundation reinforcement, bolt embedment and orientation against the approved drawing.

28. What happens if foundation bolts are installed in the wrong position?

Incorrect bolt positioning can prevent the silo base plate from fitting. Site correction may require an engineered repair, modified base plate or approved post-installed anchors. Bolts should not be bent, cut or relocated without engineering approval.

29. Can foundation bolts be installed after the concrete is poured?

Post-installed mechanical or chemical anchor systems may sometimes be used, but they require proper concrete assessment, drilling, cleaning, embedment and engineering design. They should not be treated as an automatic replacement for cast-in bolts.

30. Can foundation bolts be welded?

Welding should only be performed when the specified bolt material is weldable and the approved drawing allows it. Uncontrolled welding can damage the bolt or reduce its mechanical properties.

31. How can exposed foundation bolts be protected from corrosion?

Exposed threads can be protected using galvanizing, suitable coatings, grease, protective caps or project-specified corrosion-protection systems. Water accumulation around the base plate should also be prevented.

32. What is the price of silo foundation bolts and plates in India?

The price depends on bolt diameter, total length, material grade, thread length, bend type, anchor-plate dimensions, template-plate thickness, coating, quantity and fabrication requirements.

33. Does RA Enterprises manufacture customized foundation bolts and plates?

Foundation bolts, anchor plates and bolt templates can be manufactured according to approved customer drawings, required dimensions, material grades, quantities and surface-finish requirements.

34. What information is required for a foundation bolt quotation?

Please provide the bolt diameter, total length, shape, thread length and pitch, material grade, anchor-plate size and thickness, template layout, coating requirement, quantity and delivery location.
